Glove Box

Attachments

World’s First! SEM Integrated with Glove Box
– A groundbreaking solution optimized for advanced materials research, including sensitive components like secondary batteries
(Patent pending: PCT/KR2024/021506)
The Era of Costly Glove Boxes Is Over
– Maximize space and cost efficiency by isolating only the necessary zones with glove box enclosures
From Preparation to Analysis—All Inside the Glove Box
– Provides a fast and secure analytical environment without the need to move samples
Cube-II Based High-Performance Tabletop SEM—Now with Enhanced Flexibility
– Operates independently or integrates seamlessly with existing glove box systems
Smart SEM That Boosts Research Productivity
– Designed for easy maintenance and streamlined operation

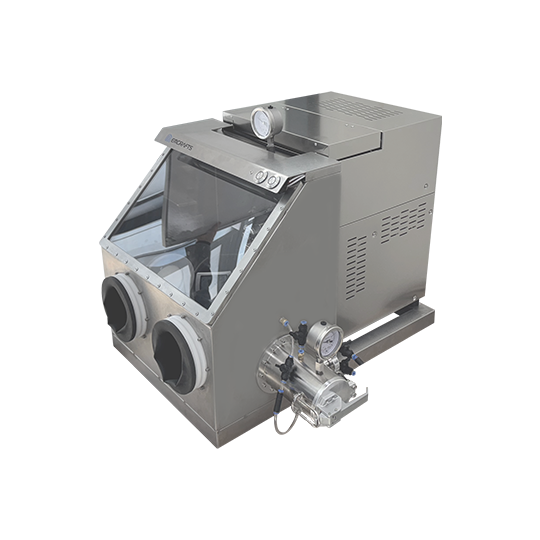

Model				Glove Box
Main Chamber				Material: Stainless Steel(SUS-304), 2T Dimension: 490(W) * 350(D) * 520(H) mm Window: Acryl, 462(W) * 323(D) mm, 4.5T Glove Port and Port Cap: Acetal, Φ160 * 2ea Glove: Natural Rubber Latex, 1 pair Operating System: Gas Exchange by Purging (Argon or Nitrogen), Manual Pressure Control Lamp: 24V 7W LED
Ante Chamber				Material: Stainless Steel(SUS-304) and Acetal, 4T Dimension: Φ96 * 155 mm Door: Aluminum, 10T Operating System: Gas Exchange by Vacuum suction, Manual Pressure Control Pressure Gauge: -1 bar to 3 bar
Bottom Fram				Material: Stainless Steel(SUS-304), 1.5T Dimension: 490(W) * 742.75(D) * 45(H)

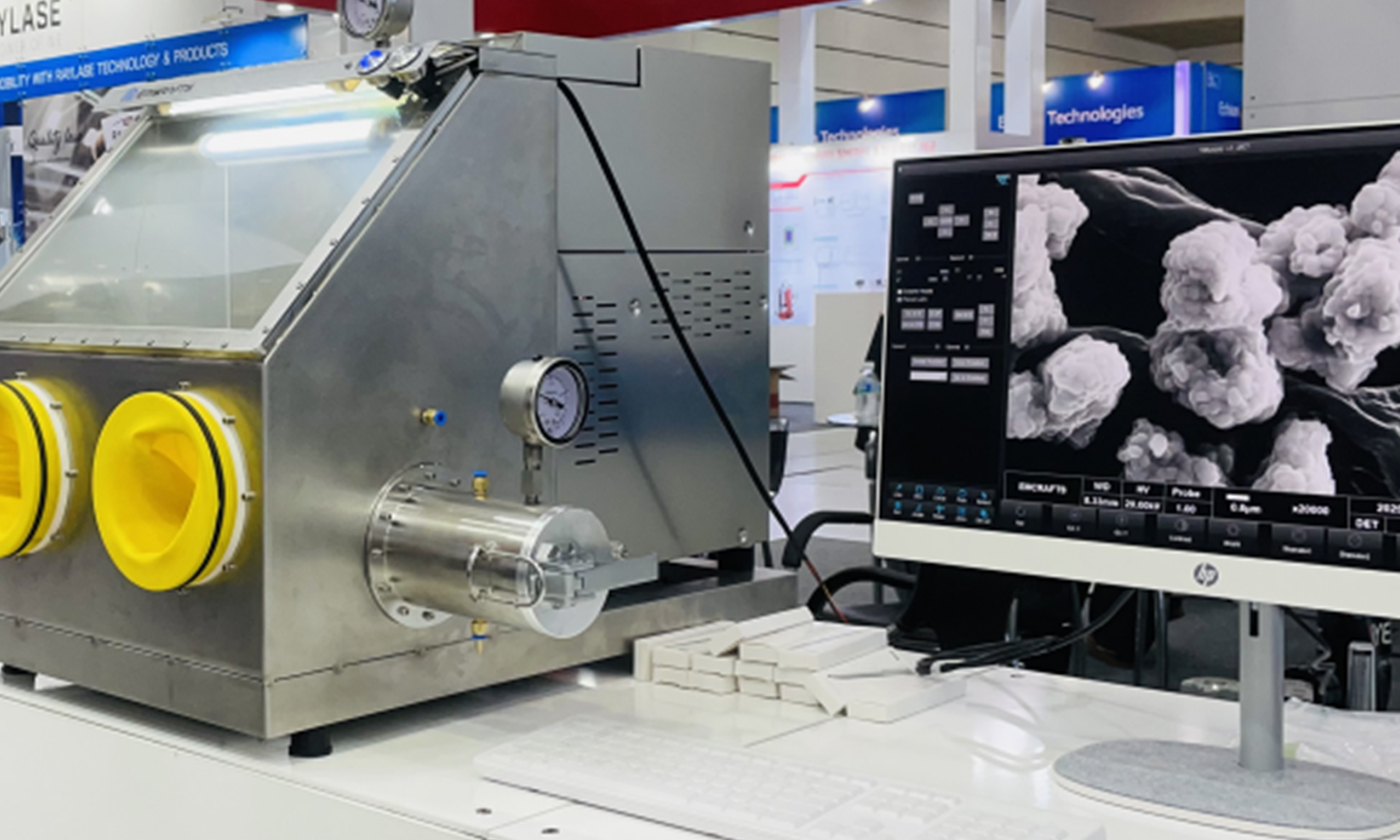

Cube-Glove on Display at Mcrafts’ Booth, InterBattery 2025
(Source: Maeil Business Newspaper)
